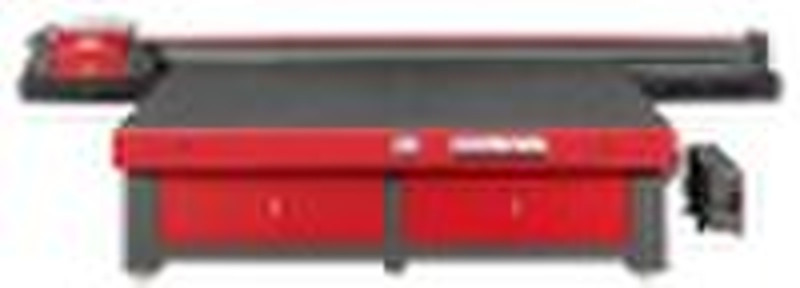

LIYU Victor KJ series UV Flatbed Printer

LIYU Victor KJseriesUV Flatbed Printer: MODEL KJ2512 / KJ2518 Print TechnologyPiezo continuous drop-on demand(DOD) Print Head4/6/8/12*KM512MH Media size2500mm*1250mm / 2500mm*1830mm Media thicknessMax. 100mm Media CheckAuto. detection of media Printing SpeedMax. 33sqm/h Print ResolutionMax720dpi/1440dpi Ink Supply SystemAuto. Ink supplying with Minus-Pressure adjustable Cleaning SystemAuto. Flush System X/Y Driver MotorDual AC Servo motor Ink typeUV Curable ink Media typeAll kinds of Rigid material and Soft media Table Pressure100kg/m2 InterfaceUSB2.0 ColorsC,M,Y,K / C,M,Y,K,W,Lc,Lm / C,M,Y,K+4W / C,M,Y,K*2 / C,M,Y,K*2+4W G./Weight1060kg Packing Size3.85M( L)*2.05M ( W )*1.20M( H ) Power requirement110V/220V±10%,>10A,50/60HZ EnvironmentTemperature:1530, Humidity:40%80%RH Ourdoors Durability2 - 5 years Specifications are subject to change without prior notice.1. Printhead Characteristics:Adopt the advanced Japanese Konica UV specialized head, 512 nozzels double staggered, built-in temperature control system, real printing resolution up to 1440dpi.2. Type of Media:Glass, ceramic, aluminum, wood, doors, cardboard, Chevron board, ceiling, MDF, metal lacquer panels, toilet cover, acrylic, plexiglass, etc.3. Mechanic Superiority:Dual lead screw & dual guider broadside scanning mechanical structure, industry-leading machinery precision; Table loading capacity of 100kg/sqm, automatic take-off and landing crossbeam, maximum media thickness up to 100mm; Sub-vacuum absorption table enables the printing on different sizes of media; Auto. detection of media, Auto. detection of Origin, pneumatic medium jack-up system plus rolling bearings enables even a single person can load the large-format media easily.4.Electronic contol Superiority:Independent developed entire control system,classic combination of USB and Optical fiber, LIYU patent software control system, have experienced numerous customers trials, stability is our permanent commitment.5. Pressure & Ink supply control:Closed-loop automatic control, reliable printing quality; pneumatic control components imported from Japan, guaranteed quality; LIYU patent Valve cleaning system, easy to maintain.6. Color options:the machine can be configured as K C M Y / K C M Y Lc Lm / K C M Y * 2 and K C M Y + W; Moreover,the machine could spray with white color as bed or cover or spot-color printing.7. Applications:Ad.andSign industry;Displaysand Demo industry;Decorationand glass industryLeather, textile and offset printing industry, etc.
